| Place of Origin: | Beijing China (Mainland) |
| Brand Name: | Nubway |
| Certification: | CE, EMC, FDA, ISO |
| Model Number: | Q Switched Nd Yag Skin Care Machine |
| Wavelength: | 1064nm, 532nm |
|---|---|
| Frequency: | 1-10Hz |
| Spot Size: | 0.7-7mm Adjustable Diameter |
| Single Pulse Energy: | 100mj-1500mj |
| Output Mode: | Q-switch Pulsed Output |
| Work Mode: | Continually Work With Intervals |
| Supply Power: | AC220V, 50HZ AV110V, 60HZ |
| Cooling System: | Water + Air |
| Color: | White |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Aluminum Alloy Case |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 200 sets/month |
IP
1. The machine will be tested 3 times before delivery, so it seldom has problems.
2. If the problem actually happens during the warranty, we will help to repair and all the accessories needed will be sent for free.
3. If out of warranty time, we will still help to solve the problems, the repair is free and you need to pay for the cost and shipping cost of the accessories.
4. We have 4 engineers who are very professional and can speak English well. They will help you timely.
Brief Introduction:
Our Electro-Optic ND TAG Q-Switch Laser NBW-1000 is most professional effective on Epidermal pigments, such as body tattoo removal, eye line and brow tattoo removal...etc, dermal pigment, such as nevus, age spot, freckle, birth mark, vericosity removal...This machine can be used for beauty salon, beauty clinic, spa, hospital...etc.
Why Choose Our Nd Yag Laser:
1. 1500mj biggest energy.
2. Self-check intelligent power supply.
3. 1-10Hz high frequency, faster treatment.
4. 650nm LED beam point, find the accurate treatment area.
5. Spot size can be adjusted through focus adjustment lens---0.7-8mm.
6. 7 jointed guide arm to reduce energy loss, make the treatment easier.
7. Pulse width is 8ns±2ns, crushing pigment more thoroughly, minor skin damage.
8. Big water tank and radiator makes the water cooling smoother, so the machine can work a longer time.
9. 1064/532nm auto switching, our machine also has special function for 1320nm black doll probe.
Scope of Treatment:
A. Epidermal pigment: Body tattoo , eye line and brow tattoo...
B. Vessels disease: Varicosity removal, capillary hemangioma...
C. Laser facial: Oil control, skin rejuvenation, skin pore improvement...
D. Dermal pigment: Nevus of ota, birthmark, coffee spot age pigment, freckle...
How does it work?
The Q-switched ND: YAG laser delivers light of special wavelenth with high energy which are absorbed by pigments in a tattoo and result in a shockwave. The shockwave shatters pigment particles, releasing them from encapsulation and break them into fragments small enough for removal by the body. These tiny particle is then eliminated by the body. Since special wavelength can only be absorbed by pigment particles, no injury to skin and normal tissues will occur.
Technical Parameter:
| Dimensions | 920× 555 ×1065mm not including joints arm |
| Weight | 100kg |
| Wastage Power | 800VA |
| Fuse | 220V, 10A |
| Output mode | Q-switch Pulsed output |
| Wavelength | 1064nm, 532nm |
| Pulse Duration | 8±2ns |
| Frequency | 1-10Hz |
| Single Pulse energy | 100mj-1500mj |
| Safety distance | Operator must wear goggles |
| Cooling system | Water + Wind cooling |
| Work mode | Continuously work with intervals |
| Spot Size | 0.7-8mm continuously adjustable |

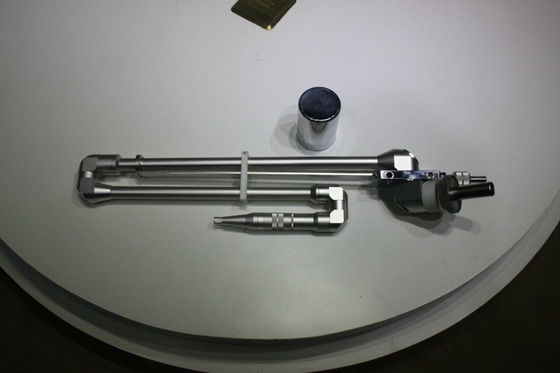

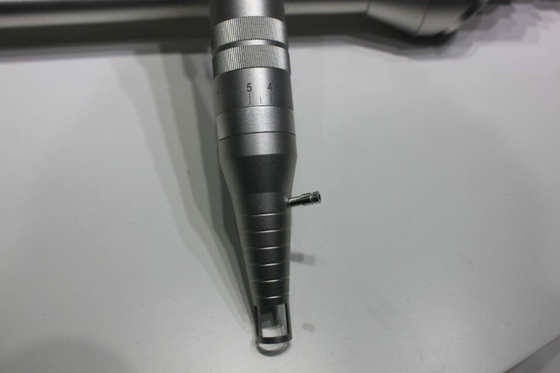

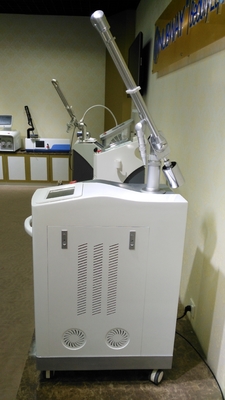

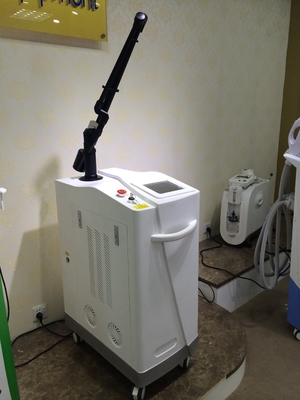

Pictures Of The Machine:

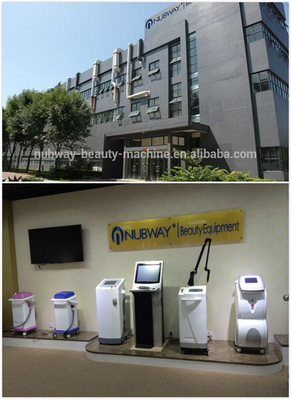

Company Information:
Beijing Nubway Company was built in 2003, specialized in manufacturing & exporting beauty equipment, we have factory, R&D team, technicians, designers, programmers and professional after sale service engineers who can speak English verywell and always solve problems for our clients in time.
We also offer ODM & OEM services, clients could customize their own unique products, adding logo, change language and even appearance are all no problem.
