| Place of Origin: | Beijing China (Mainland) |
| Brand Name: | JONTE LASER |
| Certification: | CE; SFDA |
| Model Number: | F100 |
| Application: | Remove acne and scars|Actenic keratoses |
|---|---|
| Display: | 10.4 inch big color touch screen |
| Laser apparatus: | Carbon Dioxide fractional laser |
| Laser Work mode: | Ultra pulse|fractional CW |
| Penetrate depth: | 2mm |
| Power: | 10w/20w/30w |
| Product name: | Co2 Fractional Laser Machine |
| Highlight: | co2 laser fractional |
||
|---|---|---|---|

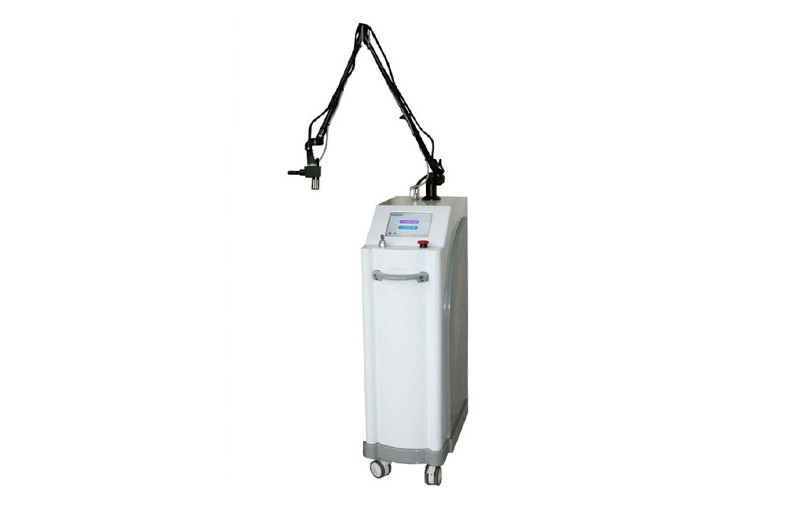

Multifunction 10600nm Co2 Fractional Laser Machine For Body Shaping
Quick Detail:
Home Use RF Beauty Machines
1.RF skin lifting
2.RF wrinkle removal
3.RF body shaping
4.RF promote metabolism
Description:
CO2 Fractional Laser System fires a laser beam which is split into numbers of microscopic beams, producing tiny dot or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.
Applications:
1. Acne scars
2. Actinic keratosis
3. Basal cell carcinoma
4. Burn debridement
5. Laser skin resurfacing
6. Eliminate the scar: Traumatism, operation
7. Improve texture tone and pore size
8. Erase unwanted brown spots
9. Smooth wrinkles around the eyes and mouth
10. Eliminate striae gravidarum
11. Rejuvenate your neck, chest and hands etc.
Specifications:
|
Laser apparatus |
Carbon Dioxide fractional laser(glass tube and radio frequency tube available) (sealed off) |
|
Laser mode: |
TEMoo |
|
Power |
10w/20w/30w |
|
Max power intensity |
75, 000 W / cm² |
|
Radiation time |
0.01 1 sec |
|
Aiming beam |
Less than 2mW, 635nm red semiconductor laser |
|
Condenser focus |
f=100mm |
|
Pulse energy |
10mj to 100mj is optional for each dot. |
|
Wavelength : |
10600nm |
|
Laser Work mode |
Ultra pulse ,fractional CW |
|
Output way |
Fractional beam& scan beam |
|
Cooling system |
Wind cooling with treatment head. Water cooling with machine (glass tube ) |
|
Dot number |
at max 2000 dots (glass) at max 3000 dots (radio frequency ) |
|
Scan mode |
Random, sequence, convergence , diagonal even/oddetc |
|
Scan Graphics |
Square ,circle ,rectangular ,triangle ,line, and any customized graphics |
|
Spot distance(pitch) |
0.12-1.25mm(adjustable) |
|
Spot size |
0.2mm |
|
Penetrate depth |
2mm |
|
Pulse duration |
0.1-20ms for optional |
|
overlay |
1 to 20 times |
|
Transmission system(Beam delivery ) |
Articulated arm with 7 mirrors |
|
Display |
10.4 inch big color touch screen |
|
Dimension |
53cm(L)*38cm(W)*139cm(H) |
|
Power supply |
220V 50HZ , 110V 60HZ |
|
Net Weight |
38KG |
|
Output pattern |
Circle, square, etc. 8 shapes for your option! |
Competitive Advantage:
Special Features
1. Super large color touch LCD, more sensitive, more comfortable and accurate operating;
2. 7 joint arms, more convenient operating, less costs;
3. Output patterns are more than 8.The requirements of different patients can be satisfied;
4. Fractional and super-pulse can be switched at random. There is a wider use in clinical application;
5. Focal spot diameter and interval are adjustable. Patient’s unique needs can be met during treatment;
6. CPU imported from America can work stably and has excellent performance;
7. There are 3 mode CPG, 10W, 20W, which can be installed according to different needs
